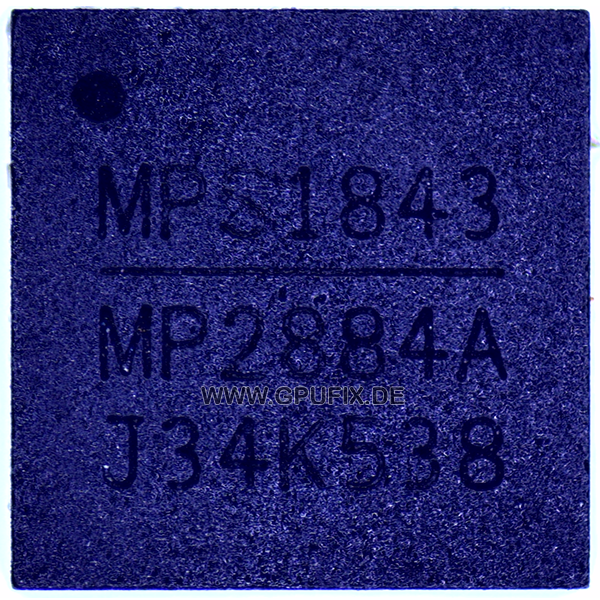

MP2884A

MP2884A
Monolithic Power Systems
Digital, Multi-Phase PWM Controller with PMBus and PWM-VID
Package Type: QFN-40, 5mmx5mm

We can program the controller according to your video card. After selecting the "Firmware" option please write the exact model of your device before completing the payment​ !

The MP2884A is a digital, multi-phase, pulsewidth modulation (PWM) controller with digital PWM-VID interface compatible with NVIDIA’s Open VReg specification. The MP2884A can work with MPS’s Intelli-Phase products to complete the multi-phase voltage regulator (VR) solution with minimal external components. The MP2884A can be configured with up to 4-phase operation. The MP2884A provides an on-chip EEPROM to store and restore device configurations. Device configurations and fault parameters can be easily programmed or monitored via the PMBus/I2C interface. The MP2884A can monitor and report the output current through the CS output from the Intelli-Phase products. The MP2884A is based on a unique, digital, multi-phase, non-linear control and provides fast transient response to the load transient with minimal output capacitors. With only one power-loop control method for both steady state and load transient, the power loop compensation is very easy to configure.

Data sheet
