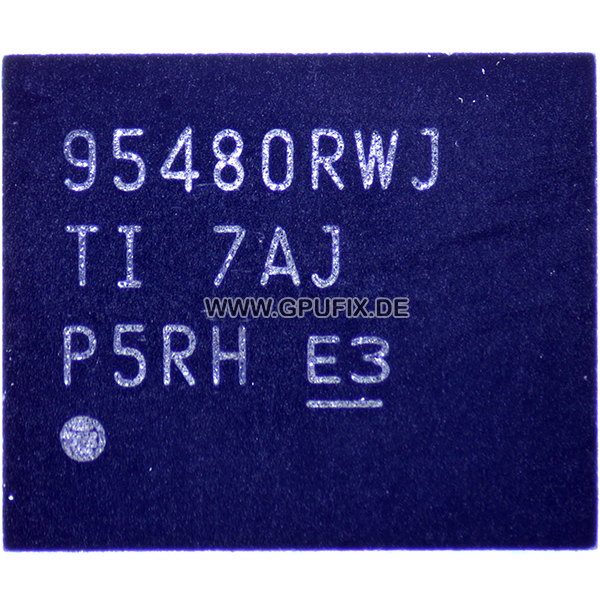

CSD95480RWJ
Texas Instruments
Synchronous Buck NexFET™ Smart Power Stage

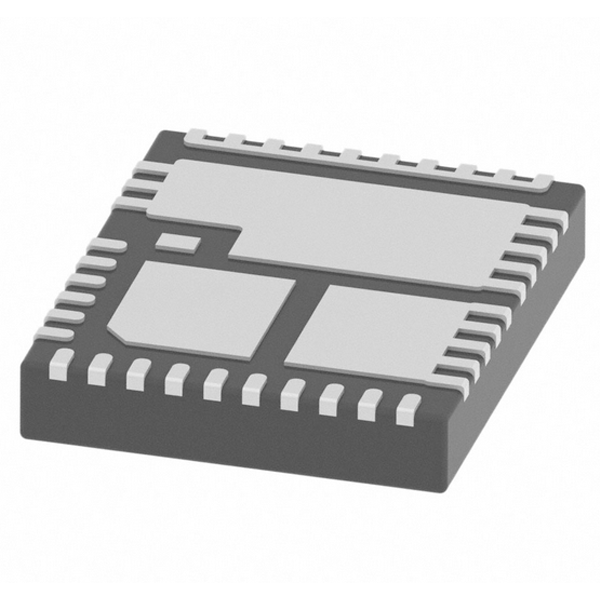

Package Type: QFN, 5.00-mm × 6.00-mm
The CSD95480RWJ NexFET™ power stage is a highly optimized design for use in a high-power, highdensity synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
Data sheet
